Wood gasifier with CHP 350 kW
The demand for industrial applications has led to the development of systems with a firing capacity of approx. 1 MW.
In the meantime DC gasifiers and CHP units with 350 kW are now available in the wp3 series, with a number of technical innovations.
The systems are manufactured from high-quality, industry-standard components for a long service life. The core of the system is a direct-current fixed-bed (DC) gasifier developed over many years in combination with a specially adapted gas filter system. System solutions have also been developed for other plant components such as the fuel lock, gas cooling and coal dust discharge, which are less susceptible to faults and very easy to maintain.
For the CHP unit, we use MAN biogas engines with electronic ignition and high-quality synchronous generators. The 4-valve technology in the wp3.350 further increases efficiency.
New features of the wp3.series

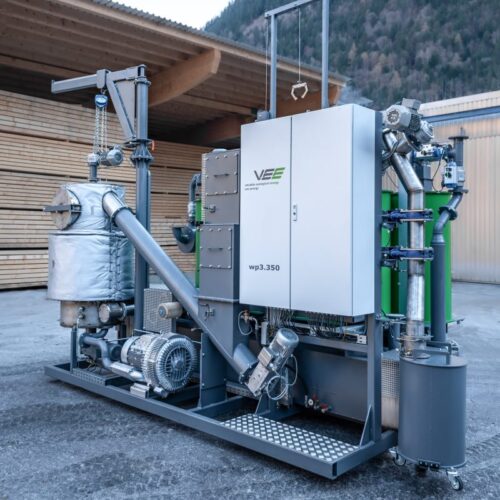

Module GV
Gasifier Unit
- Gasifier with impurity discharging system, smaller stones and pieces of metal are ejected during the process, the system achieves more full load hours due to less cleaning effort.
- Lifting devices for filter and gasifier maintenance are directly attached, so there is no need for equipment on the ceiling and pipes can be routed directly above the system.
- CHP unit with 4-valve-technology motor brings higher electrical efficiency.
- Larger exhaust gas heat exchanger provides higher thermal efficiency.

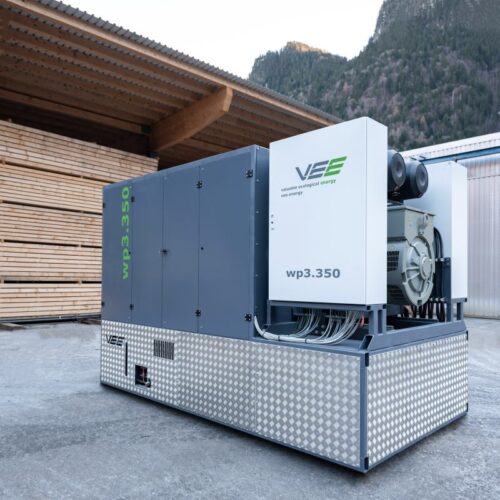

Wood chip CHP 350 kW
The development of the 350 kW Wood Chip CHP unit is based on the requirement to ensure a stable gas generation process with standard wood chips, including fine and bark fractions, for a consistently high electrical and thermal output. With our innovative technology, we have developed a future-oriented system for decentralized energy supply. A step towards independence from third-party providers while making optimum use of local resources.
Output & efficiency of the CHP 350 kW
efficiency
Dimensions and space requirements
In addition to the specified dimensions, a minimum distance of 1.2 meters is recommended between the system modules and the building walls. This facilitates access to the systems and guarantees efficient maintenance work. The dimensions given below do not include the space required for the lifting equipment.
- Gasification Unit (L x W x H)
4.08 x 2.50 x 2.49 m
- CHP Unit (L x W x H)
3.56 x 1.90 x 2.34 m
- Required room height min.
4,0 m
- Floor space approx.
55 m²
Performance data
All data are to be understood as guide values and when using a fuel in accordance with the wood chip specification.
- Electrical output 3x400V (max.)
370 kW
- Thermal output (water circuit 90°C)
650 kW
- Nominal fuel capacity of wood chips
1,230 kW
- Electrical efficiency
30%
- Thermal efficiency (water circuit 90°C)
53%
- Ideal water content of wood chips
7%
- Wood chip consumption per day (spruce/fir)
33.3 srm
- Wood chip consumption per day (beech)
22.8 srm
- Own power consumption (without drying)
10.4 kW
- Power adjustability range
70-100%
Technological advantages
- Overall solution: wood chip drying and sieving, gasification unit, CHP unit and charcoal disposal
- Operation with standard wood chips incl. fines and bark (according to specification)
- Very high system availability
- High electrical efficiency
- Minimal self-consumption of electricity (approx. 3% of output el.)
- Maintenance-friendly and compact design with little space requirements
- Low maintenance due to high-quality components
- No condensates and residues other than charcoal
- All system components / functions are integrated into one control system
- Complete documents for official approval procedures
- Service and remote maintenance, spare parts in stock
- Warranty
Installation, commissioning & maintenance
The two units (DC Gasifier and CHP) are mounted on a base frame and delivered ready for operation. We guarantee short installation times and rapid commissioning.
Thanks to the high-quality components and good accessibility, the maintenance costs of the systems are comparatively low. We offer individual services and contracts tailored to your framework conditions.
Wood gas CHP systems from 700 kW
A technical standard for all sizes enables individual cascading of the systems. By interconnecting several systems, you can achieve the optimum output of electricity and heat for your project.
By operating several systems in parallel, maintenance and servicing can be carried out one after the other without causing downtime of the overall output.
Further Components & Services
System control
The system can be operated and monitored locally, via smartphone or via the internet from anywhere in the world. Warning and fault messages are sent by email or SMS.
Wood Chip Dryer
Perfect wood chips for an optimal pyrolysis process and high efficiency. A specially developed wood chip drying system with integrated screening.
Plant Service
Our systems are designed to be low-maintenance and easily accessible. Wear parts and spare parts are kept in stock and are delivered by parcel service or express courier. We offer customer-specific service and maintenance contracts.
